Tubing and casing couplings
Zhengzhou,October 27th, 2020

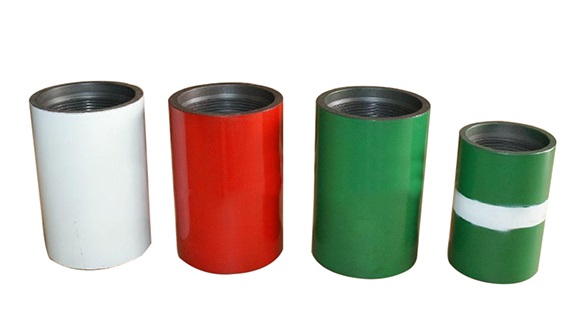

The coupling is made of thick-walled steel about six inches to one foot long. This shorter pipe is used to connect the two joints of the casing/pipe. The internal thread (female thread) of the coupling is processed to match the external thread (male thread) of the sleeve/pipe long joint. The two joints of the pipe are screwed into opposite ends of the joint.
Couplings are only a small part of the price of a string of tubes. However, they are usually purchased with a very fast turnaround time, so customers can send pipeline orders to their customers. The end user is usually an oil company or a drilling rig.
A short tube used to connect two joints of a casing. The internal thread (female thread) of the casing coupling is processed to match the external thread (male thread) of the casing long joint. The two joints of the casing are screwed into the opposite ends of the casing joint.
Supply standards and technical conditions: API Spec 5CT and 5B
Size: 1.9” – 20”
Grade: K55, J55, L80-1,N80-1, N80Q, L80-1, C90, C95, T95, P110, Q125
Tread types: STC, LTC, BTC,NUE, EUE, VAM, STC, LTC, BTC, special customs clearance, XC, VAM TOP, NEW VAM.
|
Specification |
||
|
Size (Pipe OD) (in) |
4-1/2, 5, 5-1/2, 6-5/8, 7, 7-5/8, 8-5/8, 9-5/8, 10-3/4, 11-3/4, 13-3/8, 16, 18-5/8, 20 |
|
|
Threading |
Short Round-Thread Casing (STC)
Long Round-Thread Casing (LC) Buttress Thread Casing (BC) |
|
|
Grade |
H-40, J-55, K-55, C-75, L-80, N-80, C-95, AS-95, P-110, L80-13CR |
|
API CASING COUPLINGS – SHORT THREAD(STC)
|
Casing Size OD (in) |
Coupling Size OD (in) |
Length (in) |
Weight per Coupling (kg) |
Palletized Carton Quantity(pc) |
Palletized Carton Weight(kg) |
|
4 1/2 |
5.000 |
6.250 |
3.62 |
343 |
1242 |
|
5 |
5.563 |
6.500 |
4.66 |
210 |
979 |
|
5 1/2 |
6.050 |
6.750 |
5.23 |
216 |
1130 |
|
6 5/8 |
7.390 |
7.250 |
9.12 |
115 |
1049 |
|
7 |
7.875 |
7.250 |
8.39 |
120 |
1007 |
|
7 5/8 |
8.500 |
7.500 |
12.30 |
80 |
984 |
|
8 5/8 |
9.625 |
7.750 |
16.23 |
60 |
974 |
|
9 5/8 |
10.625 |
7.750 |
18.03 |
50 |
902 |
|
10 3/4 |
11.750 |
8.000 |
20.78 |
45 |
935 |
|
11 3/4 |
12.750 |
8.000 |
22.64 |
35 |
793 |
|
13 3/8 |
14.375 |
8.000 |
25.66 |
25 |
642 |
|
18-5/8 |
20.000 | 9.000 | 54.01 | ||
|
20 |
21.000 |
9.000 |
98.25 |
– |
– |
API CASING COUPLINGS – LONG THREAD(LC)
|
Casing Size OD (in) |
Coupling Size OD (in) |
Length (in) |
Weight per Coupling (kg) |
Palletized Carton Quantity(pc) |
Palletized Carton Weight(kg) |
|
4 1/2 |
5.000 |
7.000 |
4.15 |
294 |
1220 |
|
5 |
5.563 |
7.750 |
5.75 |
210 |
1208 |
|
5 1/2 |
6.050 |
8.000 |
6.42 |
180 |
1156 |
|
6 5/8 |
7.390 |
8.750 |
11.34 |
100 |
1134 |
|
7 |
7.875 |
9.000 |
10.83 |
100 |
1083 |
|
7 5/8 |
8.500 |
9.250 |
15.63 |
80 |
1250 |
|
8 5/8 |
9.625 |
10.000 |
21.67 |
48 |
1040 |
|
9 5/8 |
10.625 |
10.500 |
25.45 |
40 |
1018 |
API Casing Couplings Buttress Thread(BTC)
|
Casing Size OD (in) |
Coupling Size OD (in) |
Length (in) |
Weight per Coupling (kg) |
Palletized Carton Quantity(pc) |
Palletized Carton Weight(kg) |
|
4 1/2 |
5.000 |
8.875 |
4.55 |
196 |
892 |
|
5 |
5.563 |
9.125 |
5.85 |
144 |
843 |
|
5 1/2 |
6.050 |
9.250 |
6.36 |
144 |
916 |
|
6 5/8 |
7.390 |
9.625 |
11.01 |
92 |
1013 |
|
7 |
7.875 |
10.000 |
10.54 |
80 |
844 |
|
7 5/8 |
8.500 |
10.375 |
15.82 |
64 |
1013 |
|
8 5/8 |
9.625 |
10.625 |
20.86 |
48 |
1002 |
|
9 5/8 |
10.625 |
10.625 |
23.16 |
40 |
927 |
|
10 3/4 |
11.750 |
10.625 |
25.74 |
40 |
1030 |
|
18-5/8 |
20.000 |
10.625 |
62.68 |
|
|
|
120 |
21.000 |
10.625 |
20.01 |
|
|
API Tubing Coupling:
|
Specification |
||
|
Size (Pipe OD) (in) |
1.900, 2-3/8, 2-7/8, 3-1/2, 4, 4-1/2 |
|
|
Upset |
Non Upset
External Upset |
|
|
Grade |
J-55, C-75, L-80, N-80, C-95, P-110 |
|
|
Option |
Electro-zinc plated
Phosphorised |
|
DETAILED API TUBING COUPLINGS:
|
