The size of the sucker rod 5/8,3/4,7/8,1,1-1/4 or 1-1/2
The required length
The quantity

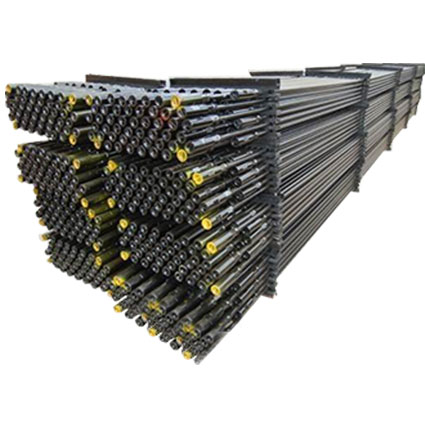

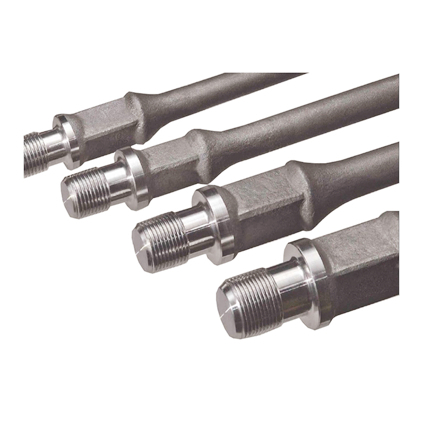

API Sucker Rod
Sucker rod is a kind of steel rod used to transfer the movement and power of pumping unit to the downhole pump. Our sucker rod has higher fatigue strength and higher fluid production with existing pumping unit.

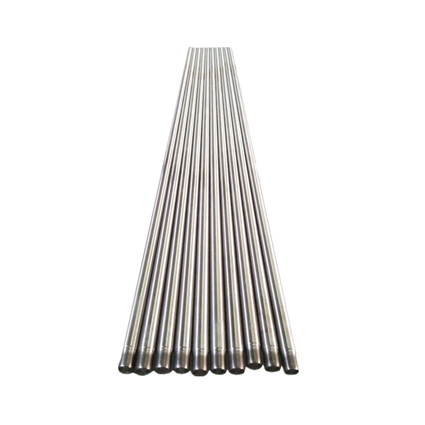

API Polished Rod
Polished rod is designed for connecting sucker rod strings to beam pumping units via polished rod packing. The rods are round cross-section bars. We provide three types of polished rods: normal polished rod, polished rod-metal spray and polished rod-upset on one end.

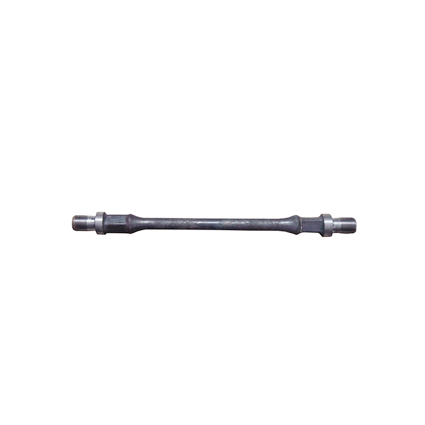

API Pony Rod
Pony rod is the sucker rod shorter than 25 ft, and they vary in length. They are most commonly placed adjacent to the polished rod at the top of the rod string, on top of the downhole pump for handling purposes, and on top of the polished rod with appropriate couplings to prevent the string from falling downhole if the polished-rod clamp slips.
Rod diameter | Nominal Length | |||
inch | mm | API nominal length | Inland Nominal length | |
5/8 | 15.88 | 25ft, 30ft | 7620mm,9140mm | 8000,10000 |
3/4 | 19.05 | 25ft, 30ft | 7620mm,9140mm | 8000,10000 |
7/8 | 22.23 | 25ft, 30ft | 7620mm,9140mm | 8000,10000 |
1.0 | 25.4 | 25ft, 30ft | 7620mm,9140mm | 8000,10000 |
1 1/8 | 28.58 | 25ft, 30ft | 7620mm,9140mm | 8000,10000 |
1 1/4 | 31.75 |
|
|
7620,9140,6000,8000 |
1 3/8 | 34.93 |
|
|
7620,9140,6000,8000 |
1 1/2 | 38.1 |
|
|
7620,9140,6000,8000 |
1 5/8 | 41.28 |
|
|
7620,9140,6000,8000 |
1 3/4 | 44.45 |
|
|
7620,9140,6000,8000 |
