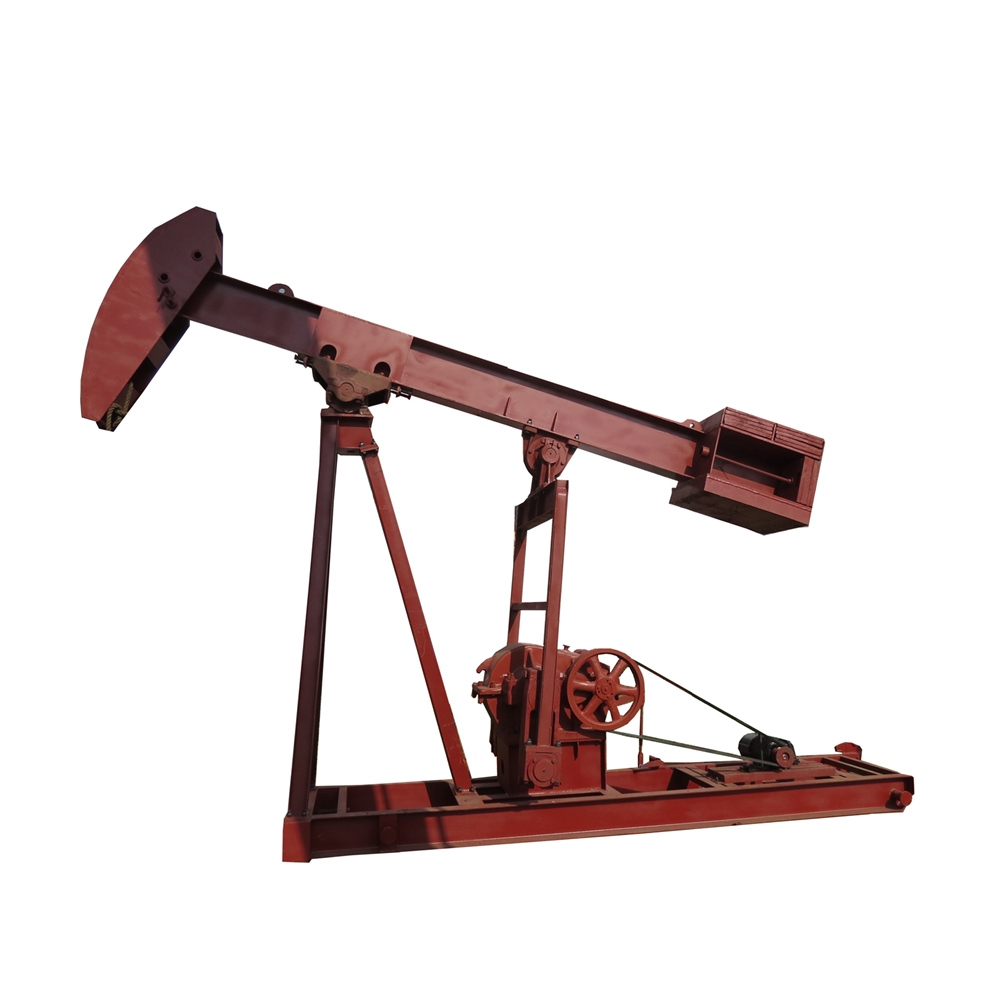

API B Series Pumping Unit

API B series pumping unit (pump jacks) is a light conventional one that uses beam balance and is a kind of power equipment commonly used in oil field for rod production. Our API B two series pumping unit is produced according to API Spec 11E "Pumping Machine Specifications" and other relevant standards, and have obtained the API Monogram License.

Send Email Email : sales@bowcentralizers.com

Specification

No.	Model	Polish Rod Capacity(lbs)	Stroke Lengths(in)	Peak Torque Rating( lbs .in)
1	B-80D-119-64	11,900	64, 54	80,000
2	B-80D-76-64	7,600	64, 54	80,000
3	B-80D-133-54	13,300	54, 41	80,000
4	B-80-119-54	11,900	54, 41	80,000
5	B-80D-76-54	7,600	54, 41	80,000
6	B-80D-133-48	13,300	48, 35	80,000
7	B-80D-109-48	10,900	48, 35	80,000
8	B-57D-109-54	10,900	54, 41	57,000
9	B-57D-89-54	8,900	54, 41	57,000
10	B-57D-76-54	7,600	54, 41	57,000
11	B-57D-109-48	10,900	48, 35	57,000
12	B-57D-95-48	9,500	48, 35	57,000
13	B-57D-89-48	8,900	48, 35	57,000
14	B-57D-89-42	8,900	42, 32	57,000
15	B-40D-89-48	8,900	48, 35	40,000
16	B-57D-76-42	7,600	42/32	57,000
17	B-40D-76-42	7,600	42, 29	40,000
18	B-25D-67-36	6,700	36, 27	25,000
19	B-25D-53-30	5,300	30/23	25,000
20	B-16D-53-30	5,300	30, 23	16,000
